Description

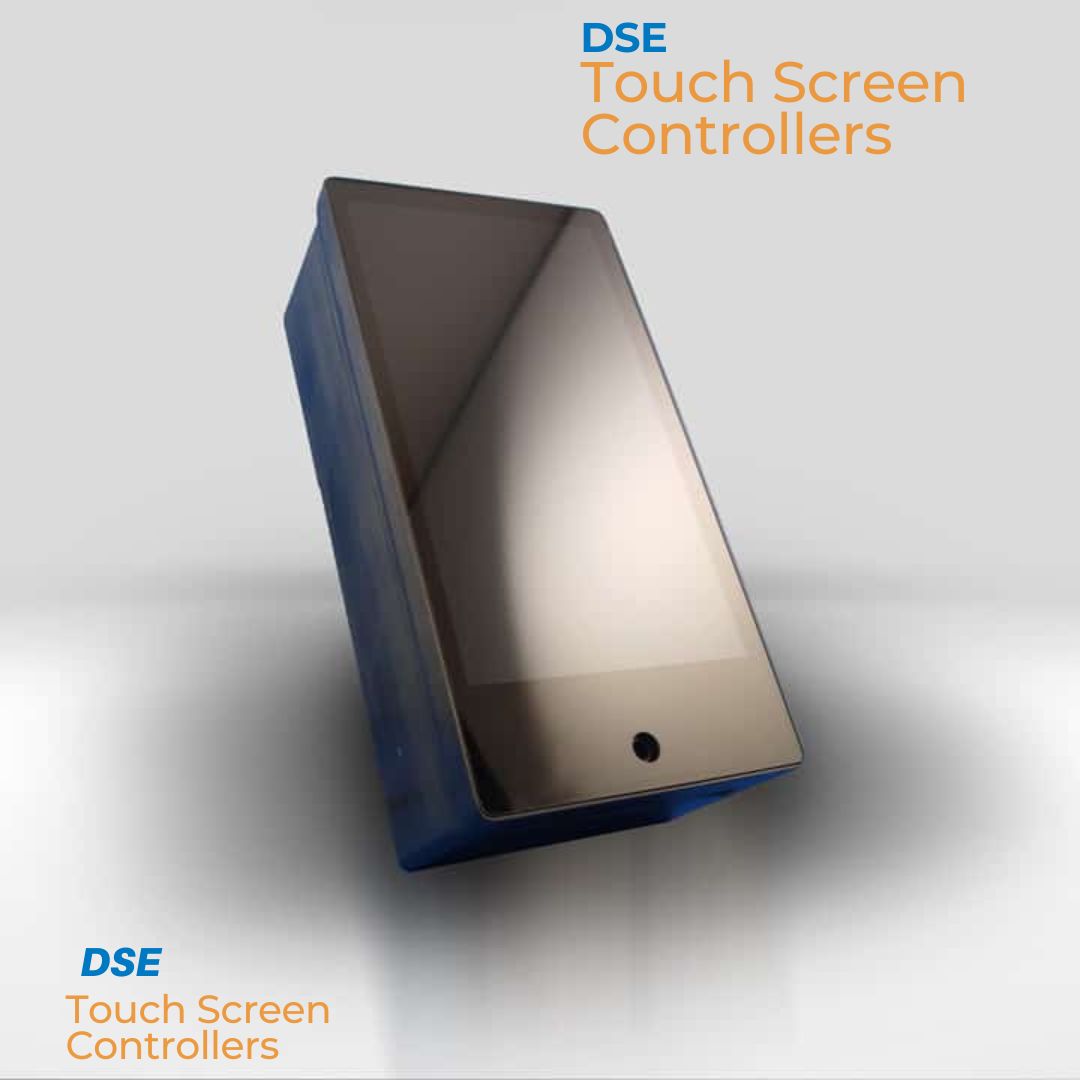

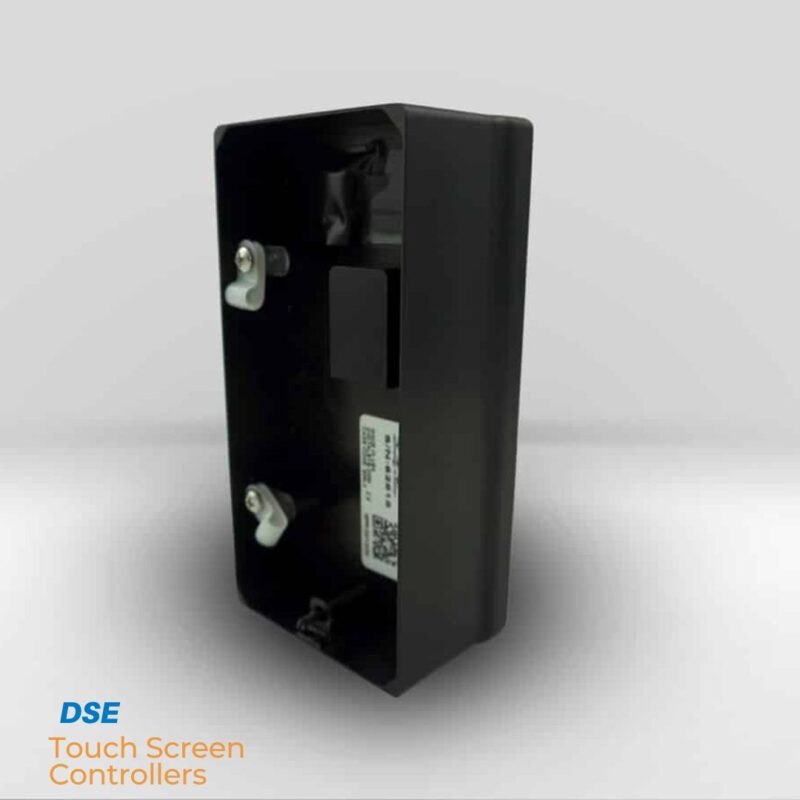

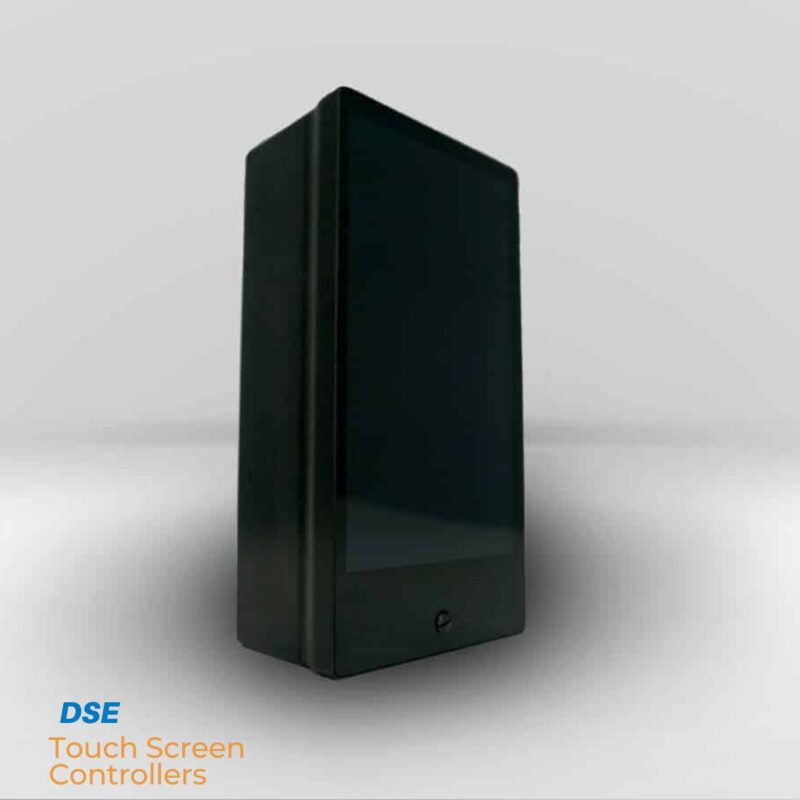

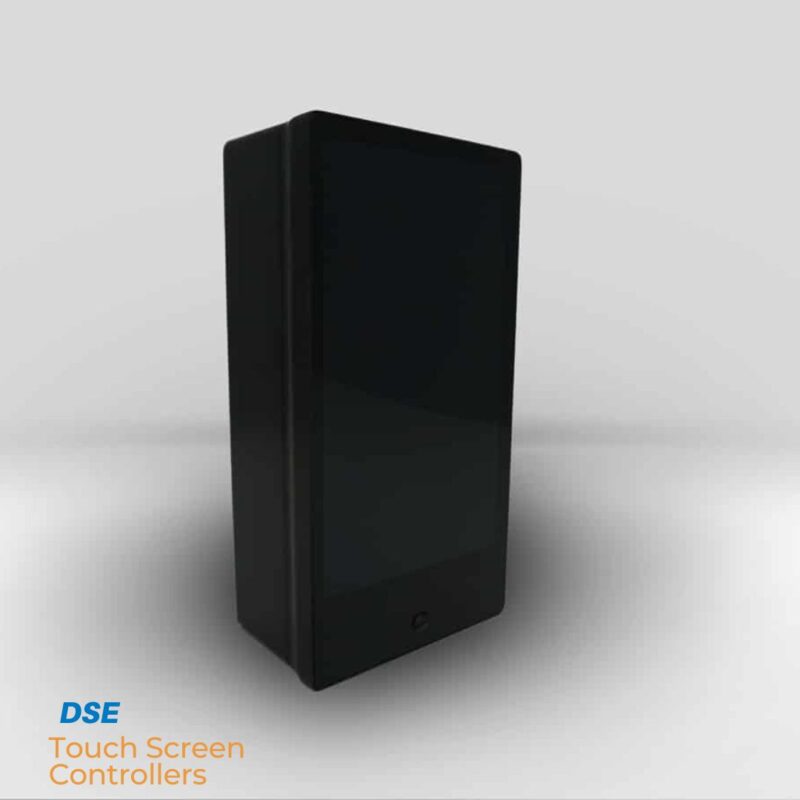

DSE- Industrial Touch Screen Controllers
Industrial Touch Screen Controllers are ideal OEM solutions to updating the human interface of a process management solutions network. DSE’s controllers are powerful, i.MX ARM based products with Gigabit Ethernet power and data interfaces. With an optically bonded LCD and fully enclosed housing, the controller is a perfect device to measure manufacturing variables and appropriately react to system health, safety, and efficiency concerns. DSE Industrial Touch Screen Controllers feature a modular design and are readily adaptable for custom OEM specifications in a multitude of applications such as industrial manufacturing, factory automation, oil/gas production, and extraction operations.
DSE- Industrial Touch Screen Controllers
Standard Features:
- Multiple High Definition Form Factors: 5.5”, 7.0”, 9.0”, 12.0” and 14.0”
- 100Base-T Ethernet
- TFT AMLCD; 720×1280 Resolution (HD-Ready)
- Projective Capacitive Touch Screen
- Milled Aluminum Enclosure
- RJ45 Connector
- Power-Over-Ethernet (POE) via RJ45
- OEM Options and Configurations
- C1D2 Explosive Rating
- Wide Temperature Range
- IP67
| Display Sizes | Multiple: 5.5”, 7.0”, 9.0”, 12.0” and 14.0 |
| Video/Network/Power | Gigabit Ethernet (GbE), RJ45 |
| Resolution | 720, 1080p |
| Operating System | Linux |
| Touch Screen | Projective Capacitive |
| Brightness | LCD Specific |
